Click on model number or picture to view larger image.

Eagnas Electronic Professional Racquet Stringing Machine

Model Number: Combo 3800

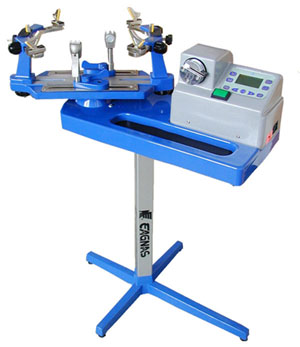

Eagnas Electronic Stringing Machine - Combo 3800

Specifications:

Features:

  • Digital electronic control panel with keypad and LCD digital display
    1. Load-cell microprocessor technology, electronic linear tensioner provides the precise tension control and also displays the actual pulling tension.
    2. True constant pull tensioning system eliminates any tension loss during pulling process.
    3. Latest Operating System 2.0: total software control
    4. Multiple speed settings for fast, medium and slow pulls
    5. Two pre-stretch mode: single pull mode and double pull mode
    6. Three pre-stretch options provide 0%, 5% or 10% pre-stretch over the set tension.
    7. Knot overtensioning option increases the current tension by 10%. This design is to reduce the amount of tension lost when tying off.
    8. Two programmable tension memory bank
    9. Tension display in both pound and kilogram: 11-90 pounds and 5-41 kilograms
    10. Self-test diagnostic feature
    11. Unique power selection switch for the desired voltage 100/110V or 220/240V.
    12. Power input with fuse protection
  • Six-point, suspension mounting system provides 10-point maximum supports and eliminates any racquet distortion.
  • Micro-adjustable head and throat mounting posts, very easy to adjust.
  • 4 individually adjustable shoulder-support arms (heavy-duty)
  • Padded K-shaped side supports
  • Padded head and throat mounting posts secure any frame (including deep V-shaped throats), no cosmetic damage to any frame.
  • Linear ball bearing string gripper: there is no string pull or muscle to use. Also no crimp or damage to any string. Easy fingertip to activate the tension pull. See operating procedures.
  • Dual-action swivel clamps can move in any direction up and down; and can handle all types of racquets without extra accessories.
  • 2 slim diamond-coated, thumb-adjustable stainless steel swivel clamps (PN-1012). Stringing has never been as easy and efficient as it is now with the Eagnas thumb-adjustable clamp.
  • All-metal spring-assisted swivel clamp base: much easier to use and no muscle needed. Just need one-eighth turn to lock and release the base. See operating procedures.
  • 360 degree racquet rotation
  • Convenient tool storage area
  • Machine base with level-adjustable pads
  • Height adjustable, easy to adjust and string in a more relaxed posture
  • Tools: Allen wrenches - 6mm, 5mm, 4mm, 3mm.
  • User's manual
  • Free illustrated stringing tutorial guide: show you how to string racquets step by step
  • String all racquets: tennis, oversized tennis, widebodies, longbodies, fan patterned, squash, racquetball, and badminton.
  • 1 year warranty for the electronic tension head
  • 1 year warranty for all the string clamps
  • 2 years warranty for all the mechanical parts

Combo 3800 major component list:

Model Eagnas: Combo 3800
Six-point, suspension mounting system

Yes
10-point supports

Yes
Mounting Stock

Yes
4 independently adjustable mounting arms

Heavy-duty
Shoulder supports



4 metal K-shaped shoulder supports (heavy-duty)
2 padded head and throat mounting posts



Yes
2 tennis swivel clamps


Slim stainless steel thumb-adjustable (PN-1012)
2 badminton clamps No
2 swivel clamp bases


Spring assisted: quickly and easily lock to the turntable and no muscle needed.
Electronic tension head

Yes
Digital control panel
LCD dispaly panel

provides the actual pulling tension display.
Input power selection
100/110V or 220/240V
power input.
Easy to switch
Fuse protection
Yes, fuse protection with On/Off
power switch.
Easy to turn on/off
String gripper
Linear ball bearing:

Much better and easier. Fingertip to activate the tension pull
Tension switch
Conveniently located next to the string gripper, much easier and faster to activate the string pull.
360 degree swivel turntable
Yes
Front tool tray
Yes:

Easy access
Height adjustment knob

Easy to adjust
Machine base
Metal
